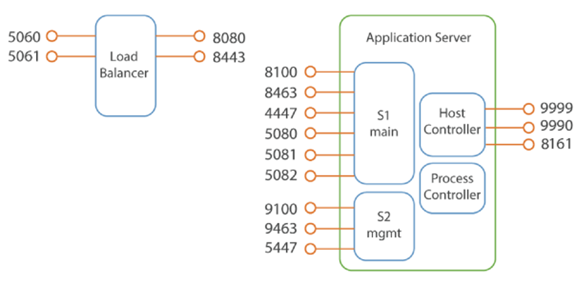

The following diagram shows the ports used by the Fusion Application Server cluster components:
LB Ports
Port | Purpose | Notes |
---|---|---|
5060 | SIP UDP/TCP | |
5061 | SIP TLS | |
8080 | HTTP | |
8443 | HTTPS | |
5065 | SIP communication between LB and AS | internal, distributed installations |
5066 | SIP communication between LB and AS | internal, distributed installations |
4427 | State sharing between LB and AS | internal, distributed installations |
8070 | JBoss OSGI port | internal |
57580 | JGroups failure detection | internal |
7580 | JGroups replication | internal |
AS Ports
Port | Purpose | Notes |
---|---|---|
5080 | SIP UDP/TCP | |
5081 | SIP TLS | |
5082 | SIP-WS (SIP over WebSockets) | |
8100 | HTTP | |
8463 | HTTPS | |
4447 | State sharing between AS and LB | internal, distributed installations |
5065 | SIP communication between AS and LB | internal, distributed installations |
5066 | SIP communication between AS and LB | internal, distributed installations |
57600 | JGroups failure detection port | internal |
45700 | JGroups multicast port for MPING | internal |
7600 | JGroups replication port | internal |
Management Server Process Ports
Port | Purpose | Notes |
---|---|---|
9100 | HTTP (License Server) | |
9463 | HTTPS (License Server) | |
5447 | Remoting (JNDI/EJB/JMX) |
Host Controller Ports
Port | Purpose | Notes |
---|---|---|
9990 | Web Administration interface | |
9999 | Management REST port (used by CLI and other processes) | |
8161 | SNMP listener |
