Ports

CBA Support

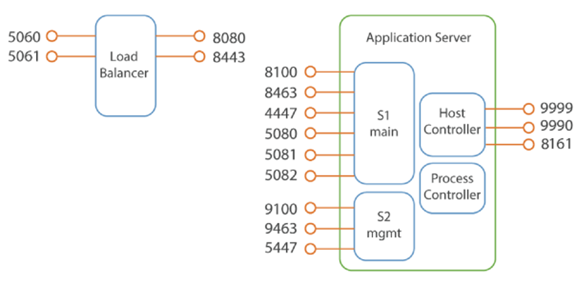

The following diagram shows the ports used by the Fusion Application Server cluster components:

LB Ports

PortPurposeNotes
5060SIP UDP/TCP
5061SIP TLS
8080HTTP
8443HTTPS
5065SIP communication between LB and ASinternal, distributed installations
5066SIP communication between LB and ASinternal, distributed installations
4427State sharing between LB and ASinternal, distributed installations
8070JBoss OSGI portinternal
57580JGroups failure detectioninternal
7580JGroups replicationinternal

AS Ports

PortPurposeNotes
5080SIP UDP/TCP
5081SIP TLS
5082SIP-WS (SIP over WebSockets)
8100HTTP
8463HTTPS
4447State sharing between AS and LBinternal, distributed installations
5065SIP communication between AS and LBinternal, distributed installations
5066SIP communication between AS and LBinternal, distributed installations
57600JGroups failure detection portinternal
45700JGroups multicast port for MPINGinternal
7600JGroups replication portinternal

Management Server Process Ports

PortPurposeNotes
9100HTTP (License Server)
9463HTTPS (License Server)
5447Remoting (JNDI/EJB/JMX)

Host Controller Ports

PortPurposeNotes
9990Web Administration interface
9999Management REST port (used by CLI and other processes)
8161SNMP listener
